DT 24.3 Tweeter

24 (0.9) mm (in.) | 20 (0.8) mm (in.) | Tweeter | 80 W | 4 Ohm

Satisfying every need, in every car

Hertz DT 24.3 Dieci series car audio tweeter features an optimized structure of the neodymium tweeter and offers high efficiency and linear, extended frequency response unheard of in this category. DT 24.3 optimized geometry boasts an efficient, highly linear annular acoustic lens along with a PEI membrane, selected for its high stiffness and heat resistance.

These design solutions provide the best damping with a detailed, linear sound, even at high SPL levels. Its installation is universal thanks to the supplied brackets allowing both surfaces mount and flush mount applications.

• Component    Tweeter
• Size mm (in.)    24 (0.9)
• Power Handling - Peak W    80
• Power Handling - Peak Note    @ 3,5 kHz 6 dB Oct
• Impedance Ohm    4
• Depth mm (in.)    20 (0.8)
• Voice Coil Ø    -
• Frequency Response Hz    3k ÷ 23k
• Magnet size D x d x h mm (in.)    -
• Weight of one speaker kg (lb.)    0,03 (0.07)
• Magnet    Neodymium
• Dome    PEI
• D mm    24
• Re Ohm    3,3
• Fs Hz    2800
• Le mH    0,3 @ 1 kHz / 0,04 @ 10 kHz
• Vas I    -
• Mms g    -
• Cms mm/N    -
• BL T*m    -
• Qts    -
• Qes    -
• Qms    -
• Spl dB    94

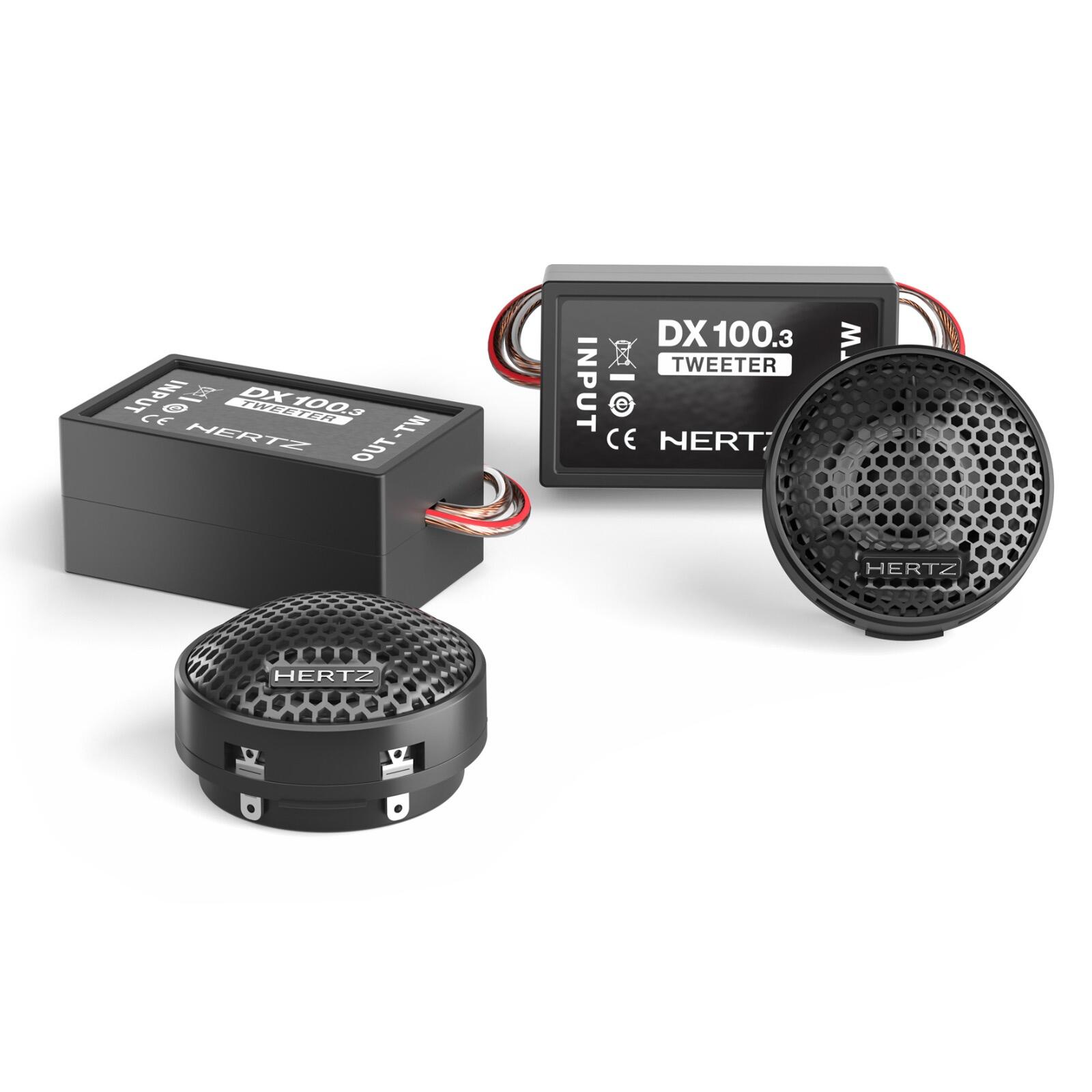

• DT 24.3 Tweeters
• DX 100.3 Crossovers
• Flush mount trim rings
• Flush mount clamps
• Angled surface mount housings
• Grilles (installed)
• Rectangular adhesive foam pads
• Round adhesive foam pads
• Owner's manual
