VOCE AV K6

Kit | 250 W Peak Power | Kit 2 way 4 ohm | AV 1.1 + AV 6.5 + Crossover

VOCE

The precious synergy between Voce speakers and audison amplifiers technology takes the in-car listening experience to a new level of excellence; the synthesis of a unique know-how employed in mobile audio reproduction.

The prestigious Eisa Award European In-Car Speaker System 2010-2011 was bestowed to the AV K6 and AV K5 kits, which gather and comprise the most advanced technologies developed for the Audison components, at the service of music.

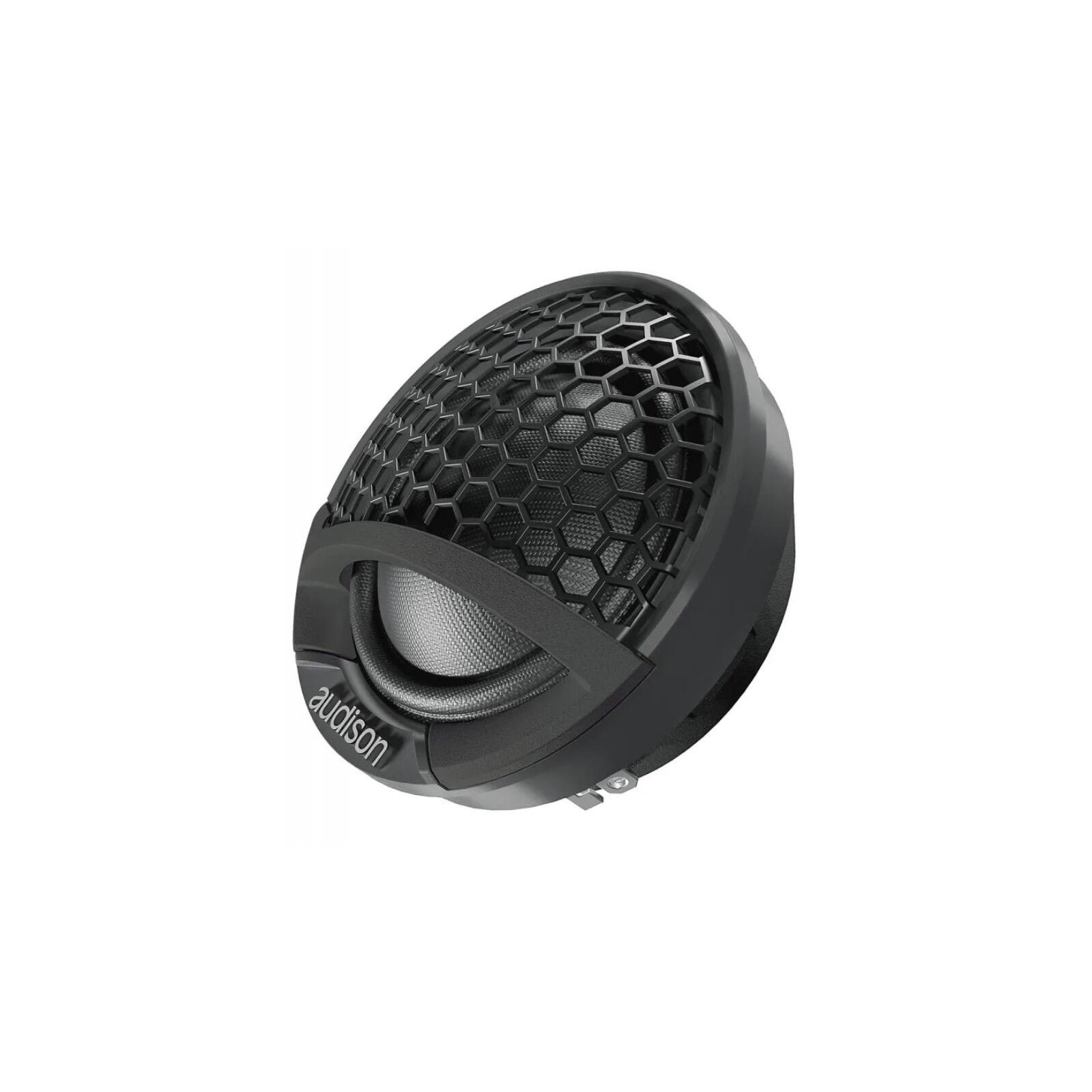

• Tetolon dome, a combination of silk and cotton with proprietary damping treatment, provides low mass and resonance-free response up to ultrasonic frequencies.
• CCAW (Copper Clad Aluminium Wire) voice coil wound on double layer, extremely lightweight and compact, resulting in a very high efficiency and a crisp, dynamic sound.
• The annular geometry of the Rear Damping Chamber, together with the proprietary damping material, extends the frequency response to lower limits and reduces harmonic distortion.
• High flux density Neodymium magnet, for very high efficiency and detailed sound.
• The profile of the aerodynamic basket’s spokes along with the open-air design ensure drastic reduction of back-wave reflections.
• The exclusive Butyl rubber Triple Wave surround profile provides full linearity as well as reliable performance under extreme conditions.
• Extremely lightweight and compact, the CCAW (Copper Clad Aluminium Wire) voice coils wound on double layer provide very high efficiency and neat, dynamic sound.
• Cotton-fibre pressed paper cone with treatment.
• The Radial Venting System ensures high thermal capability, power handling and reliability

The whole R & amp;D laboratory's experience was poured into the design of these precious components, to create a synergy that can offer the highest quality sound in terms of bandwidth, dynamics of the musical message, naturalness and richness of details.

The new reference for their own category.

• Woofer Size    165 mm
• Tweeter Size    28 mm
• Woofer Voice Coil Diameter    30 mm
• Tweeter Voice Coil Diameter    28 mm
• Magnet Size Woofer    90 x 40 x 15
• Power Handling - Peak    250 W
• Power Handling - Continuous    125 W
• Sensitivity    91 dB
• Impedance    4 Ohm
• Frequency Response    50 ÷ 22k
• Crossover Woofer    Lo/Hi-Pass 2.5 kHz @ 12/12 dB/Oct.
• Adjustment Tweeter Level    +2; 0; -2 dB
• Woofer Cone Diameter    130 mm
• Xmax Woofer    3 mm
• Re Woofer    3.5 Ohm
• Fs Woofer    68 Hz
• Le Woofer mH @ 1 kHz    0.31
• Vas Woofer    8.2 l
• Mms Woofer    16.1 g
• Cms Woofer    0.34
• Bxl Woofer    5.5
• Qts Woofer    0.74
• Qms Woofer    7.84
• Spl Woofer    91 dB
• Weight Woofer    1.2 kg
• Weight Tweeter    0.07 kg

• Audison Voce AV K6

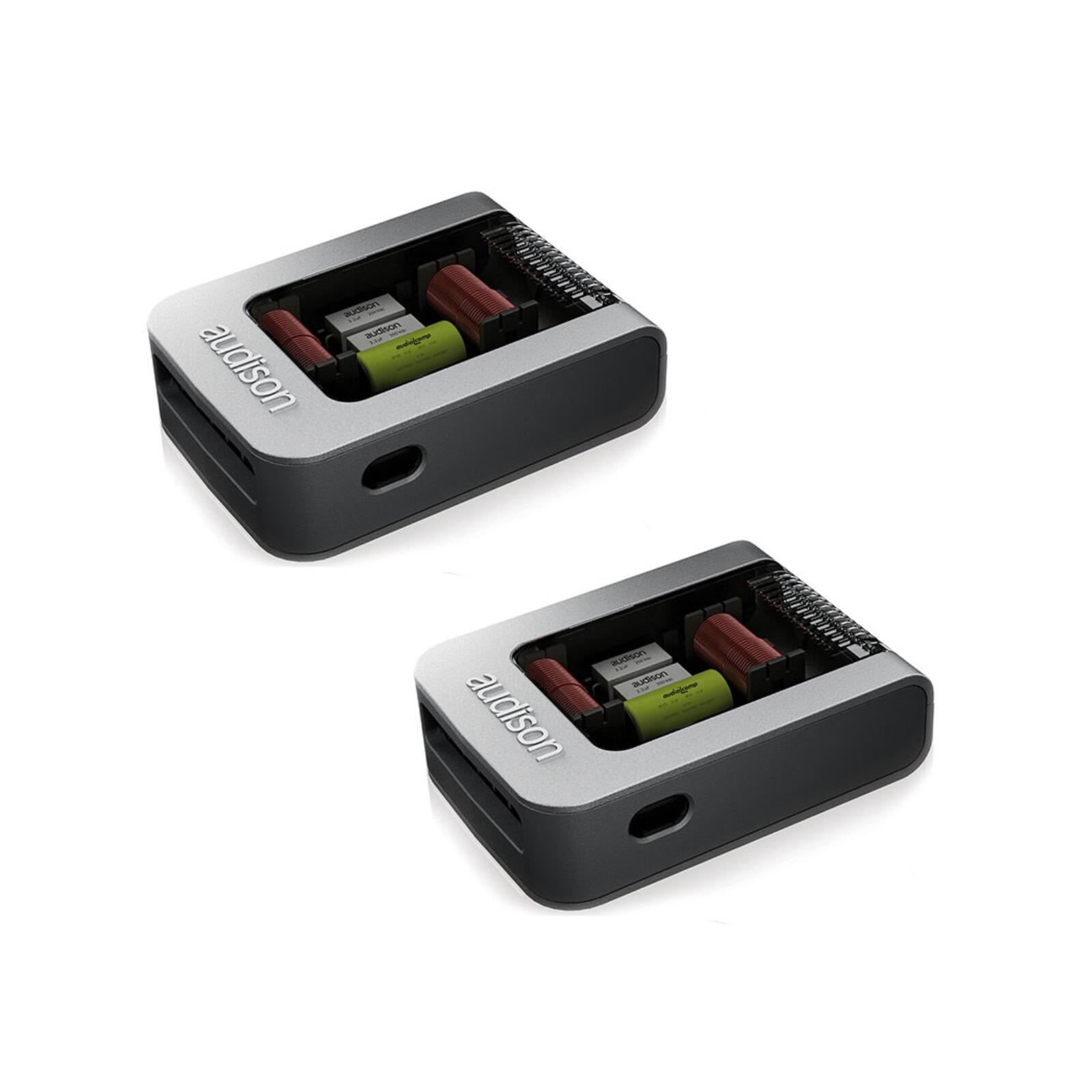

• Crossovers
• Tweeters & Mounts
• Grilles
• Screws
