Prima APK 130
Kit | 225 W Peak Power | Kit 2 way 4 ohm | AP 1 + AP 5 + Crossover
Audison Prima
Audison Prima was designed to meet the interest of the car model enthusiasts who like to appreciate all the nuances of the musical message with components that are perfectly integrated in the car OEM system, preserving the most precious Prima on Audison requirement of OEM integration: space.
Two way system features AP 1 tweeter and AP 5 woofer. APCX TW crossover features a two-position level selector providing the ability to adapt its response to its two main applications: +2dB if installed behind the OEM grille, 0dB for an A-pillar installation without additional grilles between the tweeter and the listener.

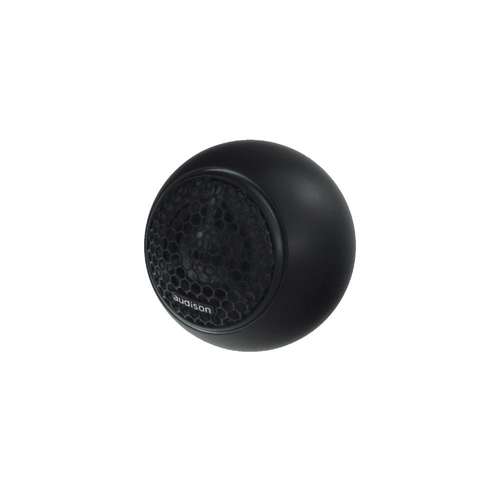

- AP1 tweeter with 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
- AP 1 tweeter with acoustic lens designed to compensate for and fine tune the in-car frequency response anomalies in the 10kHz-13kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
- APCX TW very compact tweeter passive crossover optimized for OEM Integration featuring an attenuation switch (0 dB, +2dB) to tune the in-car response according to different installation conditions.
- Passive crossovers are supplied with OEM Integration compliant fast-on connectors. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.

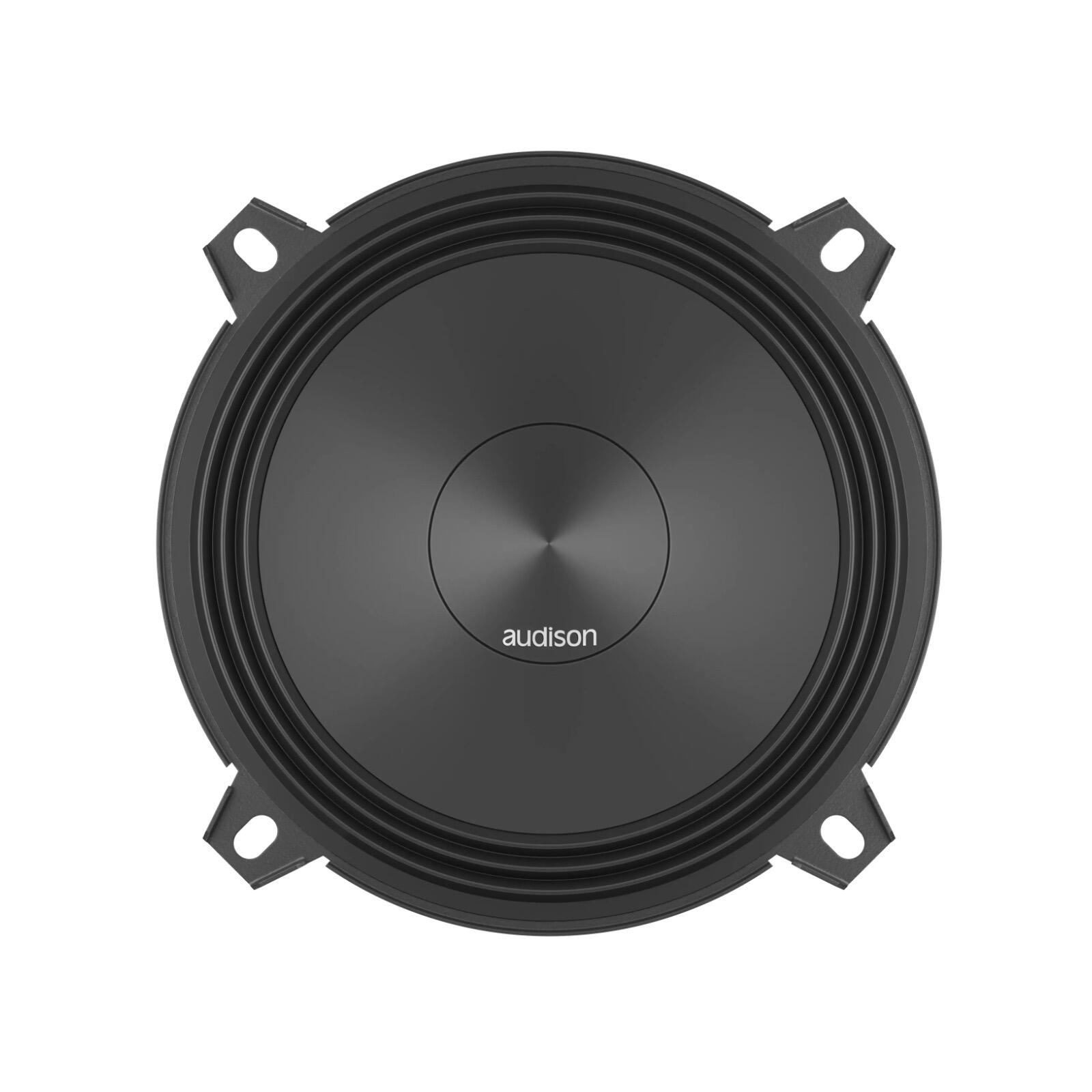

- AP 5 woofer with 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
- AP 5 woofer with water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
- AP5 woofer with reduced mounting depth, providing ease of installation in OEM placements.
- AP5 woofer with TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow Triple Wave profile, for maximum excursion linearity.
- AP 5 woofer with compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
- AP 5 woofer with high current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
- Developed with the KLIPPEL suite.
To ease the installation in OEM placements the woofers are equipped with high current fast-on terminals with double contact on positive and negative poles for high flexibility and quick connection.
- Woofer Size 130 mm
- Tweeter Size 26 mm
- Woofer Voice Coil Diameter 32 mm
- Tweeter Voice Coil Diameter 20 mm
- Crossover Type HP @ 3,5 kHz - 6 dB Oct
- Magnet Size Woofer 85 x 40 x 13
- Power Handling - Peak 225 W
- Power Handling - Continuous 75 W
- Impedance 4 Ohm
- Frequency Response 70 ÷ 20k
- Adjustment Tweeter Level +2; 0
- Woofer Cone Diameter 107 mm
- Xmax Woofer 2 mm
- Re Woofer 3.1 Ohm
- Fs Woofer 90 Hz
- Le Woofer mH @ 1 kHz 0.25
- Vas Woofer 4 l
- Mms Woofer 9 g
- Cms Woofer 0.34
- Bxl Woofer 4.6
- Qts Woofer 0.68
- Qms Woofer 8
- Spl Woofer 93 dB
- Weight Woofer 0.65 kg
- Weight Tweeter 0.04 kg
