Prima APBX 8 DS

Subwoofer Box | 500 W Peak Power | 200 mm | 4 + 4 ohm sub box

Audison Prima

Audison Prima was designed to meet the interest of the car model enthusiasts who like to appreciate all the nuances of the musical message with components that are perfectly integrated in the car OEM system, preserving the most precious Prima on Audison requirement of OEM integration: space.

• Ultra-low profile (5.16 in. / 131 mm) box with sealed design perfectly tuned to fully exploit the APS 8 D driver.

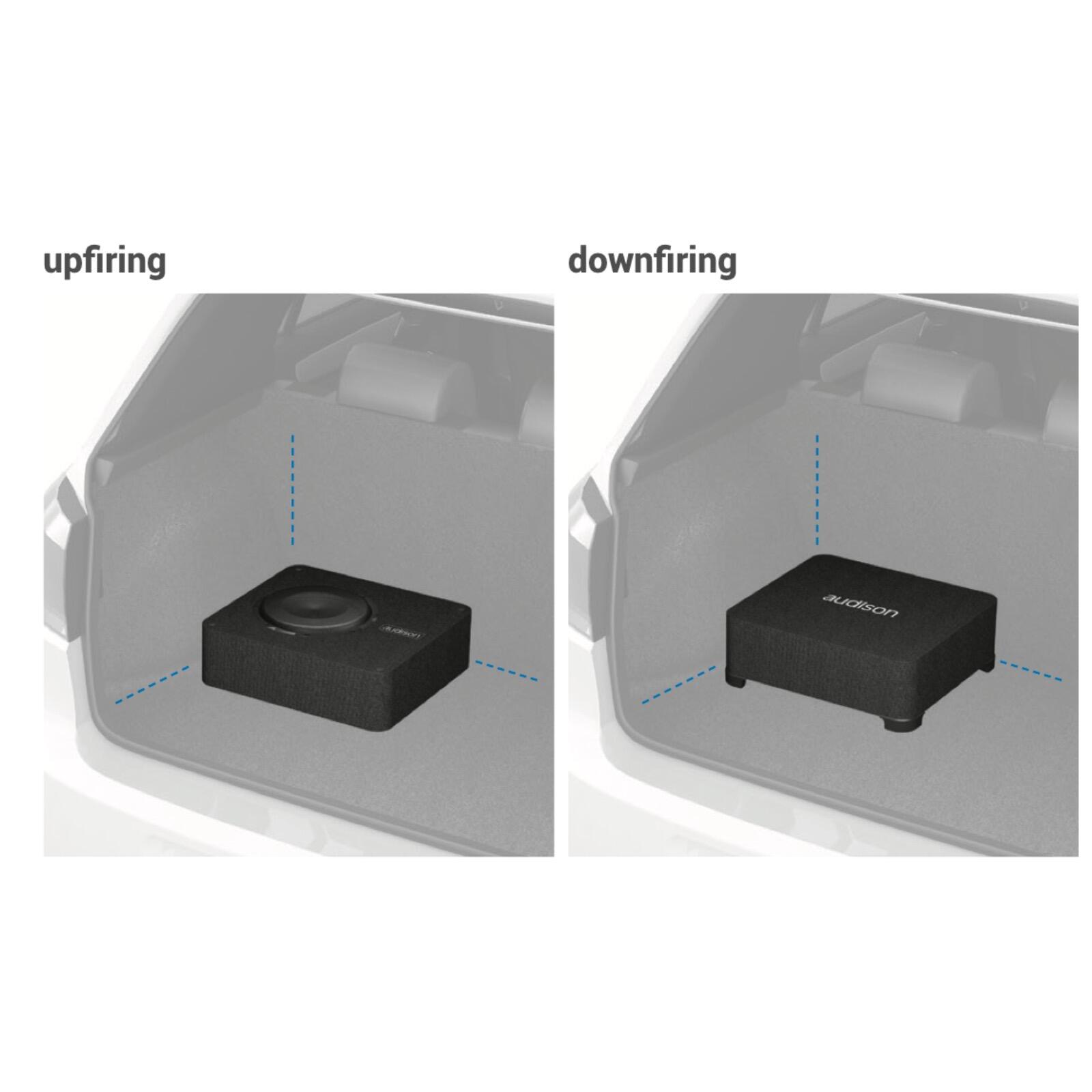

• 2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting to increase the low-frequency extension and Up-Firing install to obtain more punch and definition.
• Leveling feet with velcro inserts included for a secure grip with the carpet while maintaining easy removal.
• SSP (Sub Smart Plug) features both traditional push contacts and a Plug-&-Play terminal block to easily configure the impedance as required and provides a quick release.
• Rounded corners allow easy positioning in the trunk and act as reinforcement to reduce enclosure resonance.
• Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (9 mm, one-way).
• Massive driver motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high excursion conditions.
• Water-repellent pressed paper 8 in. cone, featuring a profile developed
• with FEM simulation and optimized with the Klippel Scan Vibrometer. Specifically developed to be combined with either AP1 D mono or AP4.9 bit/AP4 D (2 CH bridged) amplifiers taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.
• Sturdy metal grid included for a total protection of the subwoofer driver.

The APBX 8 DS loaded enclosure provides the highest performance/ size ratio. For this purpose an 8.5 lt. sealed enclosure with a 4+4 ohm dual voice-coil configuration was adopted to exploit the full power of an AP5.9 bit (paralleling voice coils for a 2 ohm load) or with two pairs of AP8.9 bit bridged channels (one bridged pair of channels to each voice coil). The speakers high excursion capability allows the use of the proprietary BASS BOOST of AP bit amplifiers to make use of all the available power for rich and dynamic bass.

• Size    200 mm
• Power Handling - Peak    500 W
• Power Handling - Continuous    250 W
• Magnet Material    HIGH DENSITY FLUX FERRITE
• Cone Material    WATER REPELLENT PRESSED PAPER
• Dimension A    374 mm
• Dimension B    334 mm
• Dimension C    109 mm
• SSP (Sub Smart Plug) terminal block Provided with a Plug&Play connector to be able to disconnect the box easily and safely.
• 2S² (2 Sides / 2 Sounds) design Provides the ability to select between Down-Firing positioning to increase the low frequency extension and Up-Firing install to obtain more punch and definition.

• APBX 8 DS
• Velcro Feet
• Terminal block
