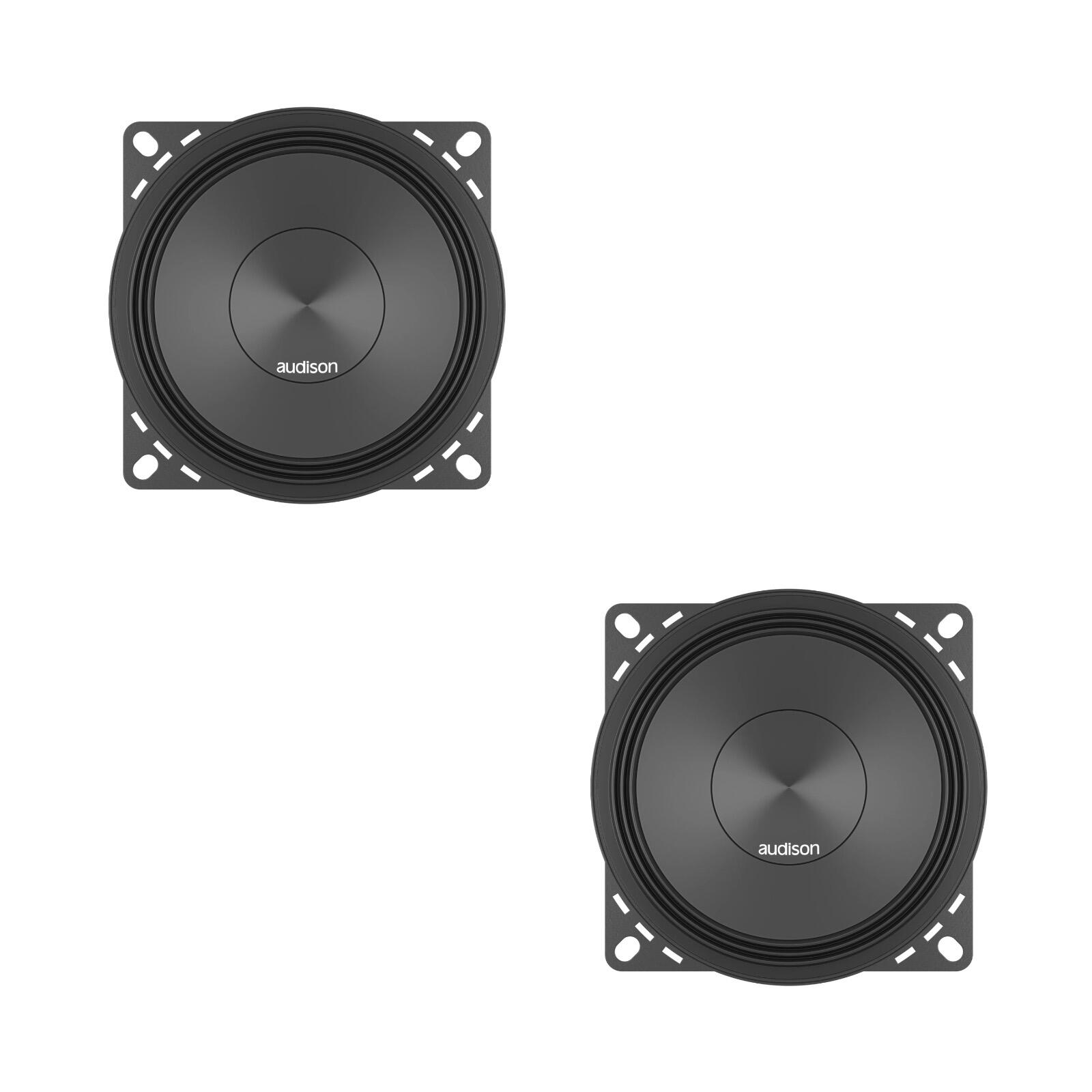

Prima AP 4

Mid Range | 120 W Peak Power | 100 mm | 4 ohm

Audison Prima

Audison Prima was designed to meet the interest of the car model enthusiasts who like to appreciate all the nuances of the musical message with components that are perfectly integrated in the car OEM system, preserving the most precious Prima on Audison requirement of OEM integration: space.

The AP 4 midbass offers very extended frequency response, both in high and low frequencies, combined with high efficiency and features a 25 mm pure copper voice coil to ensure more balance in mid-high frequency ranges.

• Very extended frequency response, in both high and low frequencies, combined with high efficiency.
• No passive crossover required to maximize efficiency: the cone is optimized with the Klippel Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.
• Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
• Reduced mounting depth, providing ease of installation in OEM placements.
• TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
• 25 mm pure copper voice coil; ensuring precise balance in the mid-high frequency range.
• Compact basket, protected by abrasion-resistant and scratch-proof coating.
• Developed with the KLIPPEL suite.

• Size    100 mm
• Power Handling - Peak    120 W
• Power Handling - Continuous    40 W
• Impedance    4 Ohm
• Frequency Response    80 ÷ 7,5k Hz
• Voice Coil Ø    25 mm
• Woofer Qes    1,2
• Xmax    1.8 mm
• D    85 mm
• Re    3.2 Ohm
• Fs    125 Hz
• Vas    1.5 l
• Mms    5 g
• Cms    0.3 mm/N
• BL    3.4 T•m
• Qms    7.6
• Qts    1
• Le Standard    0.16 mH
• Spl    91 dB
• Weight    0.4 kg

• Audison AP 4 Prima Speakers
